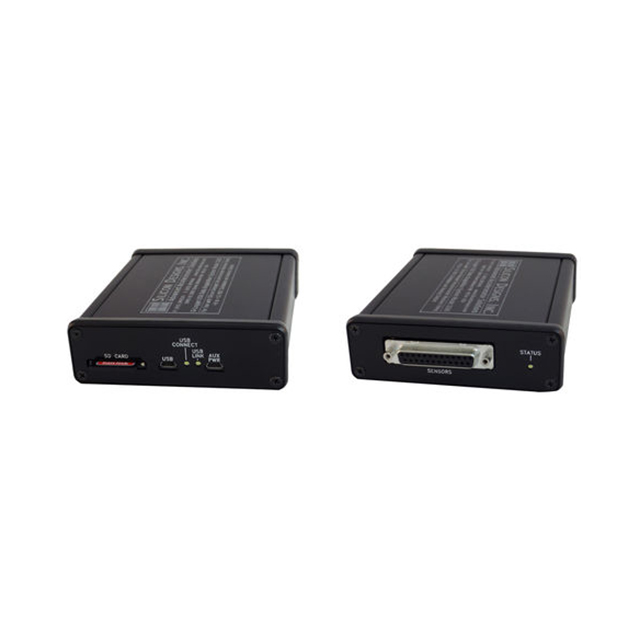

SDI 3330 G-LOGGER USB DATA ACQUISITION SYSTEM

Updated:2025-03-13

Brand: SDI
Model: 3330
Description: SDI's Model 3330 G-Logger? is a low-cost, USB-powered portable data acquisition systems with the same powerful monitoring, FFT analysis, and display capabilities typically found in much more expensive
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SDI 3330 G-LOGGER USB DATA ACQUISITION SYSTEM Description：

Datasheet

SDI's Model 3330 G-Logger® is a low-cost, USB-powered portable data acquisition systems with the same powerful monitoring, FFT analysis, and display capabilities typically found in much more expensive systems. The 3330 gives users a quick, powerful, and comprehensive real-time data stream with fast setup at a very affordable price.

Compatible with all of Silicon Designs industrial accelerometers

No additional accelerometer power supply needed

Automatic and manual calibration routine

+/-1G Flip or manually enter from calibration certificate

Adjustable filters and FFT for data analysis in both real time or post collection

Three input channels support three 1- axis modules or one 3-axis module

16 Bit sample rates from 1 to 10,000 samples/second per axis

Recording feature with playback in multiple speeds

Available preconfigured if purchased with a new Silicon Designs accelerometer module

Automatic setup in less than 5 minutes includes bias, scale factor, etc.

Last configuration stored in memory and available remotely

Included software features familiar and convenient UI built using a LabView platform

ZERO TO MEDIUM FREQUENCY APPLICATIONS

PHYSICAL
Case Size	5.5" x 4.25" x 1.5"
Weight	275 grams / 9.5 oz.
Case Material	Die Cast Aluminum, Plastic
ENVIRONMENTAL
Operating Temperature	0°C to +55°C (max)
Storage Temperature	-40°C to +85°C (max)
Humidity	0% - 90% Non-condensing
OPERATIONAL
Connection	25 Pin Female D-Sub
USB Connection	Micro USB (B)
Memory Type	SD Card, Micro SD w/ Adaptor
Max SD Card Size	32 GB
PC REQUIREMENTS
Operating Systems	Windows 10, 8, 7, XP
Host Connection	USB2 Type A
Power Supply	Via USB Cable
Max Power Consumption	750 mW
TCP/IP Remote Operation	Network Connection Req.
