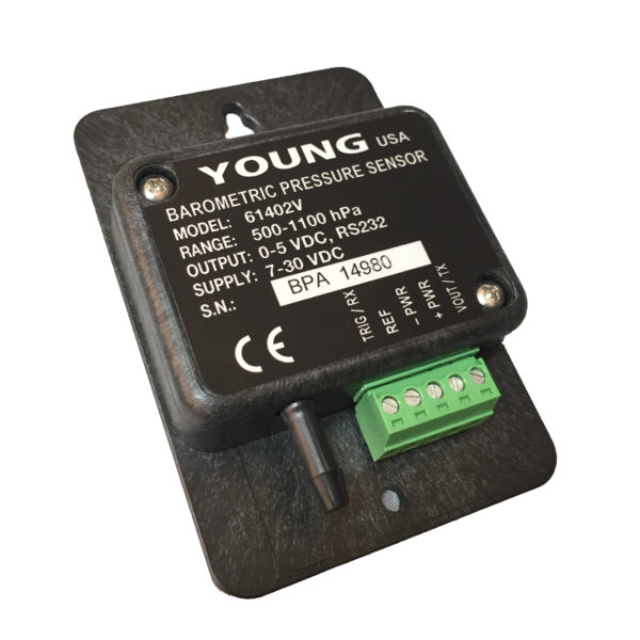

61402V Barometric Pressure Sensor

Updated:2025-03-13

Brand: R.M.Young
Model: 61402V
Description: The Model 61402 Barometric Pressure Sensor offers unparalleled performance and flexibility for atmospheric pressure measurement.YOUNG barometric pressure sensors combine high accuracy and low power co
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Barometric Pressure Sensor Description：

User's manual

YOUNG barometric pressure sensors combine high accuracy and low power consumption over a wide range of pressures (500 to 1100 hPa) and temperatures. The compact size allows easy placement in most standard enclosures. The barometer is available in two configurations to satisfy a variety of applications:

Model 61402V offers 0-5 VDC and RS-232 output

Model 61402L offers 4-20 mA, RS-232, RS-485 and SDI-12 outputs.

For outdoor installation, Model 61360 Weatherproof Enclosure and Model 61002 Pressure Port are recommended.

Barometric Pressure Sensor Specification：

Pressure Range：	500 – 1100 hPa
Operating Temperature：	-40 to +60°C
Digital Accuracy：	0.2 hPa (25°C) 0.3 hPa (-40 to +60°C)
Analog Accuracy：	0.05% of analog pressure range
Analog Temperature Dependence：	0.0017% of analog pressure range/ °C (25°C reference)
Long Term Stability：	0.08 FS per year
Update Rate：	1.8 Hz max
Serial Output：	Full duplex RS-232 (61402V/61402L) SDI-12, half duplex RS-485 (61402L only) Baud: 1200, 4800, 9600, 19200, 38400 Polled or continuous ASCII text, NMEA
Analog Output：	0 to 5000 mV or 0 to 2500 mV (61402V) 4 to 20 mA (61402L)
Resolution：	Analog 0.025% of scale Serial 0.01 hPa
Power Requirement：	Model 61402V (7 to 30 Vdc) Vout Mode = 3.6 mA Sleep Mode = 2.7 uA RS232 Mode = 7.6 mA
Power Requirement：	Model 61402L (7 to 30 Vdc) 4 to 20 mA Mode = 25 mA max RS-232 or RS-485 Mode = 8.5 mA SDI-12 = 1.5 mA
Dimensions：	90mm (3.6 in) x 60 mm (2.4 in) x 20 mm (0.8in)
Weight：	44 g (1.5 oz)
Shipping Weight：	0.45 kg (1 lb)
61402L Manuals：	61402L
	● Defined as +/- 1 standard deviation from NIST traceable pressure reference. Includes non-linearity, hysteresis, repeatability, and calibration uncertainty. ● Defined as +/- 1 standard deviation from ideal analog output. Total analog output accuracy is the root sum square of digital accuracy, analog accuracy, and analog temperature dependence.
