Gentec-EO BA32-1KW Optical attenuator Description：

Datasheet(CN) Datasheet(EN) User's Manual

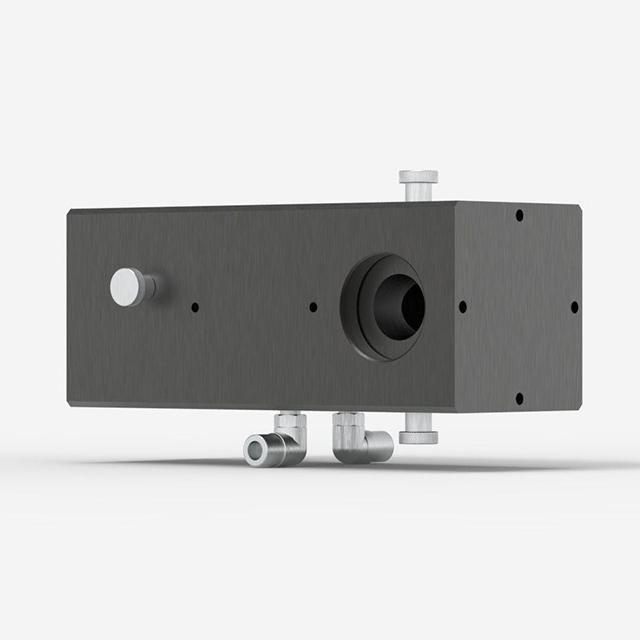

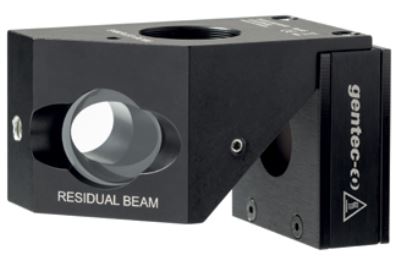

Gentec-EO BA32-1KW Optical attenuator , 32 mm ?, up to 1000 W.

PRESERVES POLARIZATION

The BA series optical attenuators use Fresnel reflection on two optical wedges to pick off a small percentage of the input beam. Since the wedges are oriented orthogonally, the S and P polarization states are switched when the refl ected beam hits the second wedge, and the difference in reflectance between the two states cancels out. The incoming beam polarization state and irradiance are thus preserved. The wavefront distortion is negligible and the laser output power stability is not affected.

MONITOR POWER AND PROFILE SIMULTANEOUSLY

The BA16K/BA32K models include a calibrated thermal power detector that also acts as a beam dump. Simply plug the detector into a Gentec-EO power meter to measure and display relative power in real time.

To obtain an absolute measurement of power, you will have to determine a correction factor for the BA16K/BA32K. This can be accomplished in few simple steps. Note, however, that such a correction factor is dependent on the laser polarization and will only be valid if the polarization is stable over time.

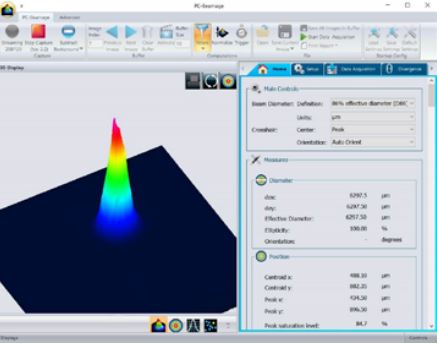

In the near future, a power measurement feature will be added to the PC-Beamage software which will then be able to display the laser power density.

MODULAR CONCEPT

The “sampled beam” port can be connected to the Beamage via the included adaptor tube. The adaptor tube is also compatible with our ND filters for additional attenuation (recommended for small beams at high power). An ND4 filter is always included with the purchase of a Beamage profiling camera.

The BA series optical attenuators can also be used, stand-alone, as follows:

OPTICAL PICK-OFF FOR USE WITH OUR ENERGY OR POWER DETECTORS

ATTENUATOR FOR OUR HIGH SENSITIVITY DETECTORS LIKE M6, PH, ETC.

POLARIZATION INSENSITIVE BEAM-SPLITTER WITH NO BACK REFLECTIONS

Key Features

MANAGE THE LASER POWER

CMOS sensors have low saturation levels as well as low damage thresholds. It is thus very important that you control your laser power to get the best measurement possible and avoid damaging the BEAMAGE camera.

Sample your laser beam

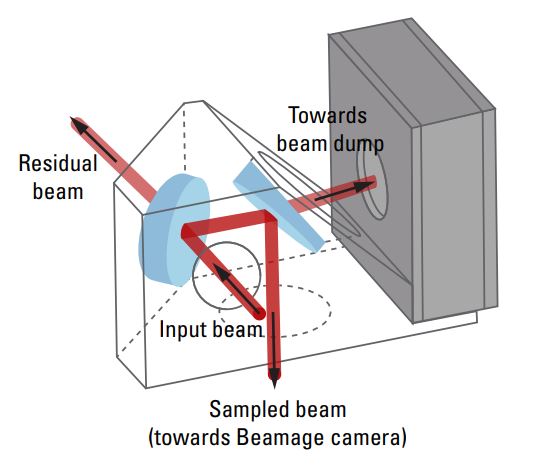

The BA series optical attenuators use Fresnel reflection on two orthogonal wedges to pick off a small fraction of the input beam. The incoming beam polarization state and irradiance are preserved.

Many possible uses

Monitor power and beam profile simultaneously

Polarization insensitive beam-splitter with no back-reflections

Optical pick-off for use with our energy or power detectors

Attenuator for our high sensitivity detectors like M6 series and PH series

Specifications
