The BD10K-W is a water cooled beam dump for up to 11kW with a 45mm aperture. It has a deflecting cone and annular absorber that withstands high power densities to 10kW/cm2. It can be used over the spectral range from 0.8 to 20μm.

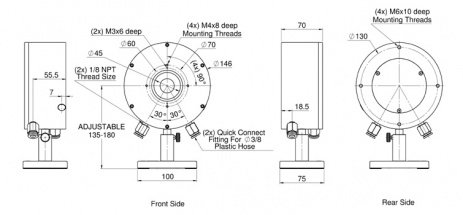

BD10K-W Drawing
| Aperture | ?45mm |
| Spectral Range | 0.8 - 20μm |
| Power Range | Up to 11,000W |
| Dimensions | ?146 W x 70 D (mm) |
| Max Average Power Density | 4kW/cm2 |
| Max Energy Density (for <100ns) | N.A. |
| Max Energy Density (for 2ms) | 18J/cm2 |
| Backscatter | N.A. |
