CS506-L Fuel Moisture Sensor Description：

Product Manual Datasheet

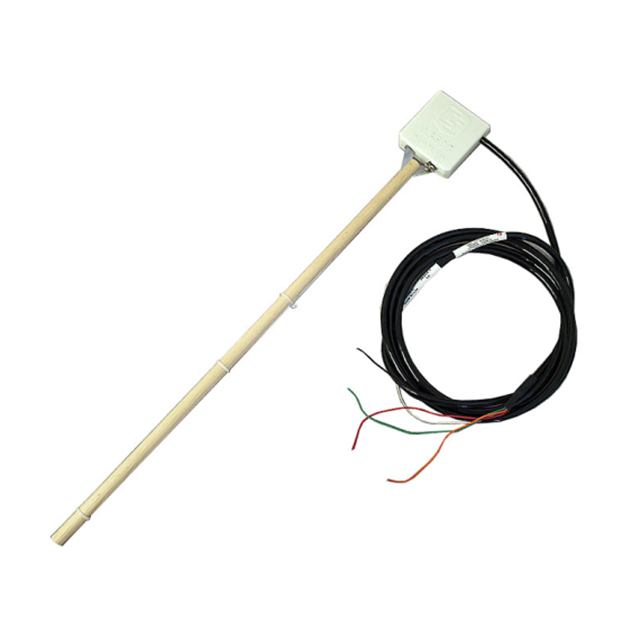

The CS506 is a fuel moisture sensor that measures the moisture content of the 26601 10-hour fuel moisture stick. The 26601 emulates the moisture content of similarly sized twigs on the forest floor. The CS506/26601 combination is used to assess forest fire fuel and is often incorporated in our prewired or custom fire-weather stations.

Detailed Description

The CS506 reports the status of small-diameter (10-hour) forest fire fuels as percent moisture by weight (1%=1 g water/100 g dry fuel). It consists of an epoxy-encapsulated electronics package that uses time-domain reflectometry (TDR) technology to measure the moisture content of the 26601 10-hour Fuel Moisture Stick. The sensor produces a ±0.7 Vdc square-wave frequency that is read using an analog or pulse channel on a Campbell Scientific data logger. The data logger then converts the frequency measurement to percent fuel moisture via a quadratic calibration.

Benefits and Features

Compatible with most Campbell Scientific data loggers

Companion product to CS205/107 fuel temperature sensor; can be mounted on the same stake

Can automatically monitor changing fuel conditions without having to visit the measurement site

Compatible telemetry options include spread spectrum radios, narrow-band radios, cellular phones, and satellite transmitters

CS506-L Fuel Moisture Sensor Specifications：
