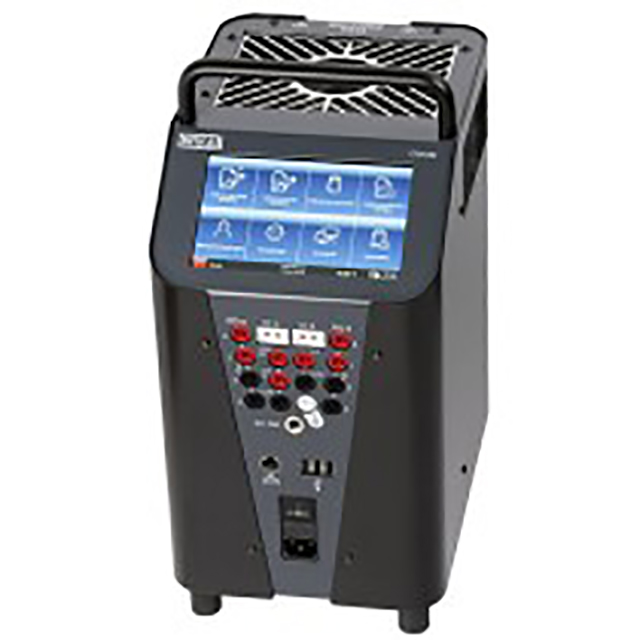

CTD9350 Temperature dry-well calibrator Description：

Operating Instruction

Range of applications

Whether in laboratories, workshops or on-site, the CTD9350 series of temperature dry-well calibrators can meet any calibration requirement. All instruments can be fitted, with an integrated measuring instrument. This enables the measurement of resistances, thermoelectric voltages and also current signals (from thermometers with a 0/4 ... 20 mA transmitter) and their direct display in °C.

Two models from -35 ... +700 °C [-31 ... +1,292 °F]

The temperature dry-well calibrators are matched to two temperature ranges. The CTD9350-165 to a range of -35 ... +165 °C [-31 ... +329 °F], which is important for the biotechnology, pharmaceutical and food industries.

Above 40 °C [104 °F] the CTD9350-700, with a limit temperature of 700 °C [1,292 °F], is used.

This model is mainly used in power plants, plant construction and also the chemical industry. All instruments are fitted with dry wells for large inserts.

Applications

Bio and pharmaceutical industries

Food industry

Power plants and plant construction

Measurement and control laboratories in the chemical industry

Demanding calibrations in production and laboratory

Special features

Easy operation via intuitive, user-friendly menus

Large, easy-to-read touchscreen

Short response times due to optimised control

Improved accuracy due to homogeneous dry-well temperature

Creation of calibration tasks incl. preparation of a certificate
