Datasheet User's Manual

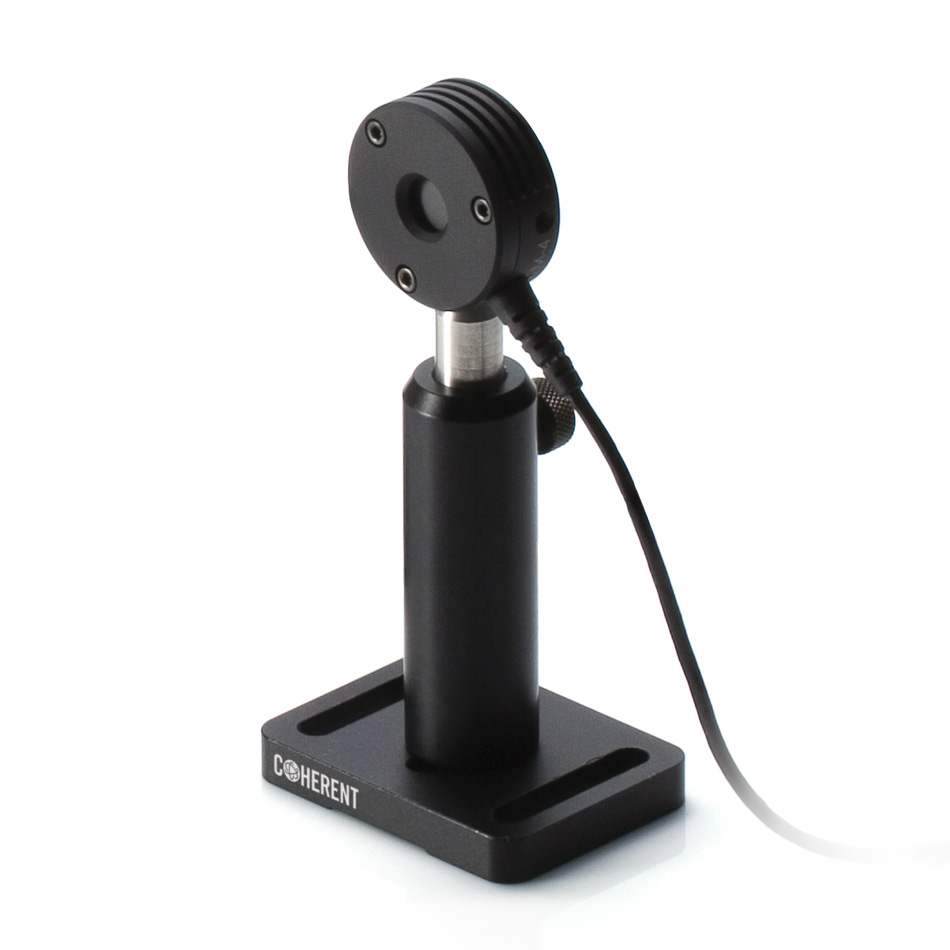

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 12 μJ to 20mJ at up to 1000 pps. Direct RS232 interface.
RS232-enabled, 12 μJ to 20 mJ pulse energy sensor, rep. rate up to 1000 pps, MaxBlack coating with 0.19 to 12 μm spectral range, 10 mm diameter active area.
The EnergyMax-RS J-10MB-HE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1110843) is available.
Key Features:
190 nm to 12 μm spectral range
10 mm diameter active area
12 μJ to 20mJ energy range
1000 pps repetition rate operation
Direct RS232 interface
ISO 17025 accredited
Specifications
