The FL400A-LP2-50 is a fan cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 50mm aperture and can measure power from 100mW to 400W continuously and to 500W intermittently. It can measure energy from 250mJ to 600J. Its high damage threshold LP2 coating covers the spectral range 0.35 – 2.2 and 10.6μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

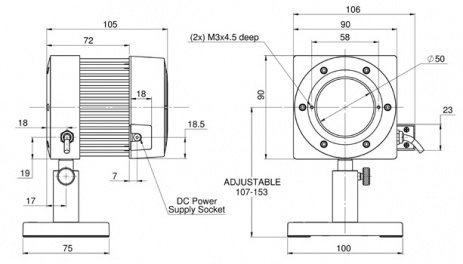

FL400A-LP2-50 Drawing
| Absorber Type | LP2 |
| Aperture | ?50mm |
| Spectral Range | 0.35-2.2μm, 10.6μm |
| Power Range | 100mW-500W |
| Energy Range | 250mJ-600J |
| Backscattered Power | N.A. |
| Dimensions | 90 L x 90 W x 105 D (mm) |
| Max Pulse Energy | 600J |
| Max Average Power Density | 10kW/cm2 |
| Response Time | 4 s |
| Max Energy Density (for <100ns) | 0.07J/cm2 |
| Max Energy Density (for 2ms) | 90J/cm2 |
| Max Average Power | 500W |
| BeamTrack Functions | N.A. |
