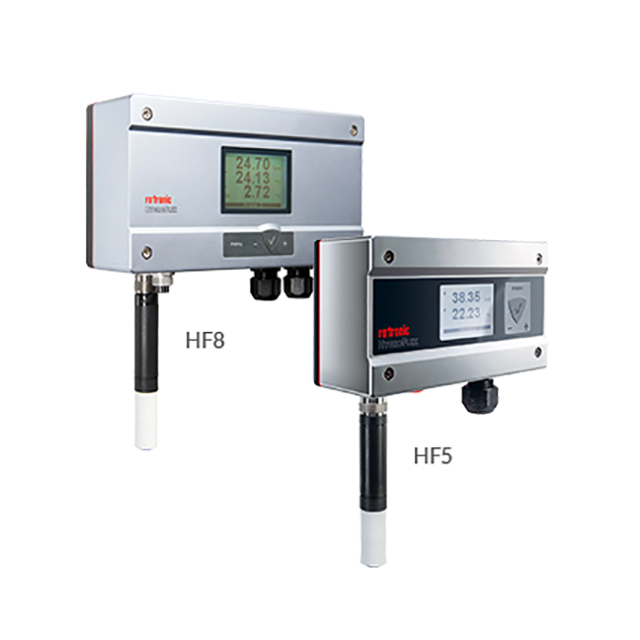

High End Humidity Transmitter - Rotronic HF5

Updated:2025-03-13

Brand: PST/Rotronic
Model: HF5
Description: The HygroFlex5 series is compatible with HC2A probes which offers a high variety in temperature ranges, accuracy and body types. This device generation also boasts a unique calibration and adjustment
Data download

Feedback
WeChat

QQ

Online Service

Product Details

High End Humidity Transmitter - Rotronic HF5 Description：

Product Manual

The HygroFlex5 series is compatible with HC2A probes which offers a high variety in temperature ranges, accuracy and body types. This device generation also boasts a unique calibration and adjustment process as well as many other useful innovations. The HF5 Humidity and Temperature Transmitters are available as wall and duct mount versions.

Exchangeable Probes for Humidity and Temperature Measurement

Features

Compatible with all HC2A probes (interchangeable)

Range of application electronics -40…60 °C / 0…100 %rh

Easy and fast validation through simulator modus

GAMP compatible (HygroSoft Software)

Specifications

	HF5
Type	1x Exchangeable HC2A probe
Markets	Pharmaceutical Industry
Operating Range	-40...60 °C / 0...100 %rh; -10...60 °C with display
Measuring Range	-100...200 °C / 0...100 %rh, Depends on Probe
Compatible Probes	HC2A-S series, HC2A-IC/IM/IE, HC2-CP, HC2-HK
Probe Cable Extension	5 m passive, up to 100 m with an active cable
Accuracy at 23°C	±0.8 %rh / ± 0.1 K (typical value)
Long-term Stability	<1 % RH (typical value), Depends on Probe
Sensors	Depends on Probe
Display	Version available with and without display
Power Supply	HF52 2-wire: 10...28 VDC HF53 3/4-wire: 15...40 VDC / 12...28 VAC HF54 electrical isolation 9...36 VDC HF56 electrical isolation 100...240 VAC"
Output Parameters	Humidity and temperature
Calculated Parameters	All psychrometric parameters available
Edition	2 analogue outputs 2-wire or 3/4-wire, freely scalable digital outputs optional (LAN / RS-485)
Output Signals	2 wire: 4...20 mA, 3/4-wire: 0(4)...20mA, 0...1/5/10 VDC
Housing Type	Wall and Duct Mount
Housing Material	ABS
Dimensions	wall 160x206 mm with HC2A-S
