The L30C-LP2-26-SH is a compact thermal power/energy laser measurement sensor for freestanding use or mounted to host system. It has a 26mm aperture and can measure from 300mW to 10W stand alone and to 100W when heat sinked. It can measure energy from 30mJ to 2000J. The sensor is able to measure high power lasers of up to 4kW by measuring the energy of 0.5 - 4s exposure to the laser. The high damage threshold LP2 absorber covers the spectral range from 0.25 to 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

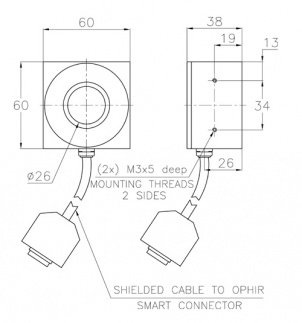

L30C-LP2-26-SH Drawing
| Aperture | ?26mm |
| Spectral Range | 0.25-2.2μm |
| Power Range | 300mW-100W |
| Energy Range | 30mJ-2000J |
| Dimensions | 60 L x 60 W x 38 D (mm) |
| Max Average Power Density | 42kW/cm2 at 100 W |
| Response Time | 1.5 s |
| Max Energy Density(for <100ns) | 0.1J/cm2 |
| Max Energy Density(for 2ms) | 130J/cm2 |
| Max Average Power | 100W heat sinked |
| Communication | N.A. |
