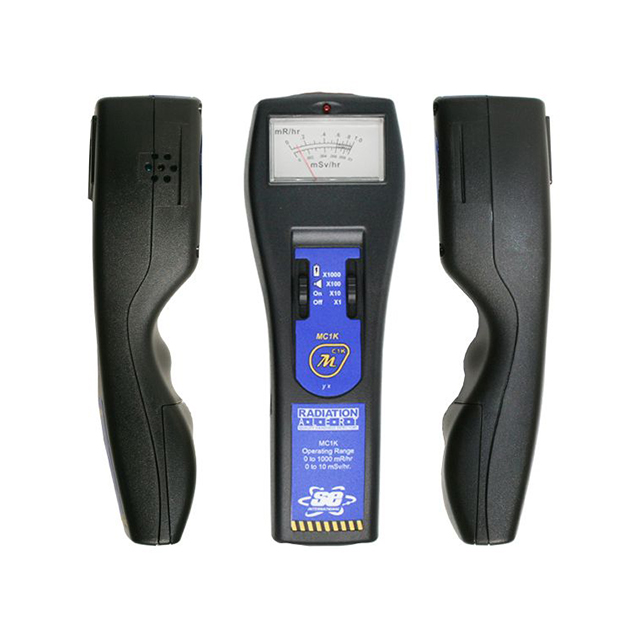

The MC1K is an ergonomic handheld survey meter using a built-in energy compensated GM detector. It detects gamma and x-rays up to 1000 mR/hr over 4 selectable ranges. The energy compensated Geiger counter affords the detector a more linear response to gammas and x-rays over the full range.
A beep sounds and a count light flashes with each event detected.
MC1K Kit Includes
MC1K Survey Meter
Carrying Case
Optional Observer Software
Optional NIST Calibration
1 yr. limited warranty
Specifications
| Detector: | Energy compensated halogen-quenched GM tube. |
| Operating Range: |
X1 position: 0 - 1 mR/hr or 0 - .01
mSv/hr X10 position: 1 - 10 mR/hr or 0 - .01 mSv/hr X100 position: 5 - 100 mR/hr or 0 - 1 mSv/hr X1000 position: 50 - 1000 mR/hr or 0 - 10 mSv/hr |
| Range Switch: | X1, X10, X100 and X1000 |
| MC1K Energy Sensitivity: | Detects gamma and x-rays down to 40 keV. Response is flat from 40 keV up. Normal background, approximately 4 CPM. |
| Accuracy: | Typically ± 15% of reading (Cs137) |
| Audio Indicator: | Internally mounted beeper (can be turned off for silent operation). |
| Anti-Saturation: | Meter will hold at full scale in fields as high as 100 times the maximum reading. |
| Outputs: | 3.5 mm headphone jack with pulse out. |
| Power Requirements: | 9 Volt alkaline battery (included). Approx. 2,000 hrs. at normal background radiation levels. |
| Temperature Range: | 14° to 122°F (-10° to 50°C) |
| Humidity: | 10% to 70% Non-Condensing |
| Weight: | 7.7 oz. (217g) |
| Dimensions: | 8.2" x 2.8" x 1.9" (209 x 71 x 50 mm) |
