The PD10-IR-pJ-C is a photodiode energy meter for low energies with a 5mm aperture. It can measure energies from 30pJ up to 14nJ. It can operate at repetition rates up to 10kHz and covers the spectral range from 0.7 - 1.8μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

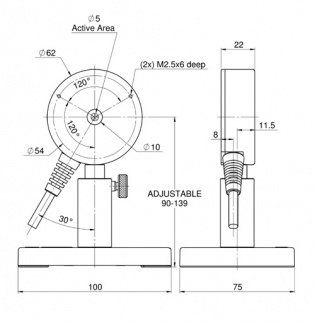

PD10-IR-pJ-C Drawing
| Aperture | ?5mm |
| Spectral Range | 0.7-1.8μm |
| Energy Range | 30pJ-14nJ |
| Maximum Frequency | 10,000Hz |
| Dimensions | ?62 W x 22 D (mm) |
| Max Pulse Energy | 14nJ |
| Max Average Power Density | 5W/cm2 |
| Max Pulse Width | 0.005 ms |
| Max Average Power | 0.2mW |
