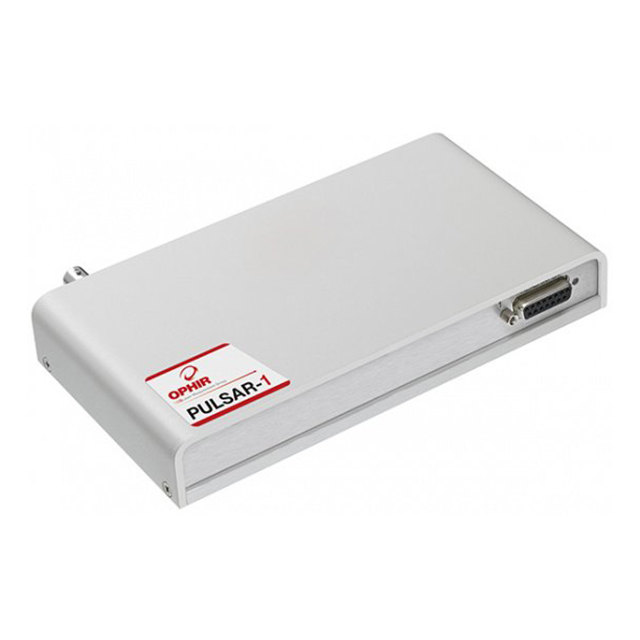

Ophir’s Pulsar interface turns your PC or laptop into a full fledged Ophir laser power/energy meter. Just install the software, plug the laser measurement sensor into the Pulsar and the USB cable from the Pulsar to the PC USB port. With the Pulsar-1, you can monitor each pulse at up to 25 kHz and utilize external trigger.
From laser measurement sensor to interface to PC.
Plug and play with most Ophir laser measurement sensors.
Record every energy pulse at up to 25 kHz.
Measure missing pulses & trigger output with external trigger.
Log power and energy, average, statistics, histograms and more with included StarLab application.
System Integrator Tools included: LabVIEW VIs, COM Object Interface.

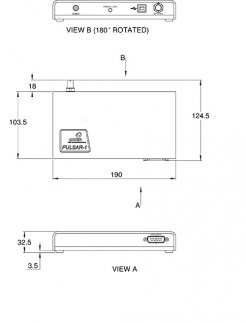

Pulsar-1 Drawing
| Thermal Sensors | Yes |
| Photodiode Sensors | Yes |
| Pyroelectric Sensors | Yes |
| BeamTrack Sensors | No |
| Statistics | Yes |
| Analog Out | No |
| Communication | USB |
| Trigger Input & Output | Yes |
| Power Supply | 12V Power Supply (included) |
| Ethernet | N/A |
| RS232 | N/A |
| GPIB | N/A |
| USB | 25,000Hz |
| Bluetooth | N/A |
| On-Board Data Storage | No |
| Automation Interface | Yes |
| Labview VI's | Yes |
