Gentec-EO QE65LP-S-MB-D0 Pyroelectric Detector Description：

Datasheet(CN) Datasheet(EN) PC-Gentec-EO User's Manual QE User's Manual INTEGRA User's Manual

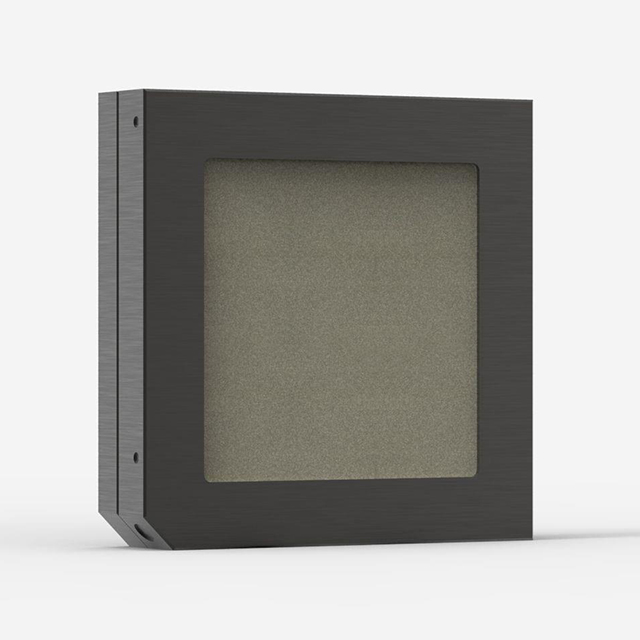

Gentec-EO QE65LP-S-MB-D0 Pyroelectric Detector for laser energy measurement up to 50 J.

Broadband absorber with high damage thresholds

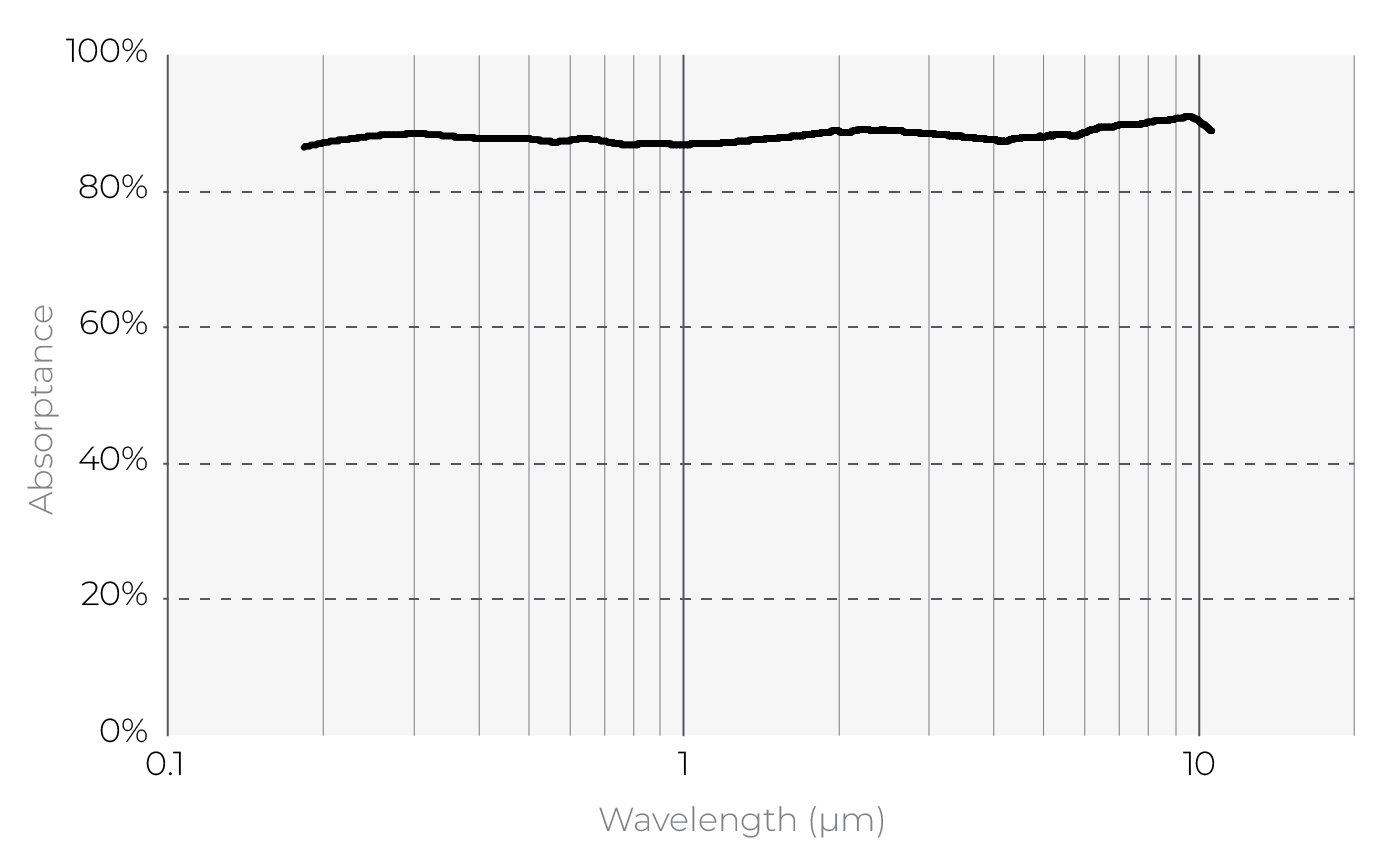

This detector features the MB absorber which offers high damage thresholds and a spectrally flat broadband response, making this energy detector a versatile solution that can cover several laser energy measurement needs.

Low risk of damaging the equipment

Useful for measuring the energy of a wide range of lasers

Optional INTEGRA (USB or RS-232) output

When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.

The most cost-efficient solution

Same measurement performance as our other solutions

No compromise on interface functions and features

Compact solution for OEM applications and field servicing

Save money on recalibration with an all-in-one instrument

Key Features

Modular Concept

Increase the power capability of your detector: 2 different cooling modules

Extra large Aperture

Effective aperture of 65 x 65 mm

QED Attenuator Available

Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength. Read more.

Low Noise Level

10 μJ for the MB coating

Test Target Included

With the MB models

Smart Interface

Containing all the calibration data

Specifications
