SE-212: Amplified 0-2500 mV, 0-150000 lux Photometric Sensor

Updated:2025-03-13

Brand: APOGEE
Model: SE-212
Description: The SE-212 is an amplified photometric sensor with a 0 to 2500 mV output and a 0-150000 lux range. The sensor features a rugged, aluminum housing that is fully-submersible and is built to withstand ha
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SE-212: Amplified 0-2500 mV, 0-150000 lux Photometric Sensor Introduction：

Specification Sheet

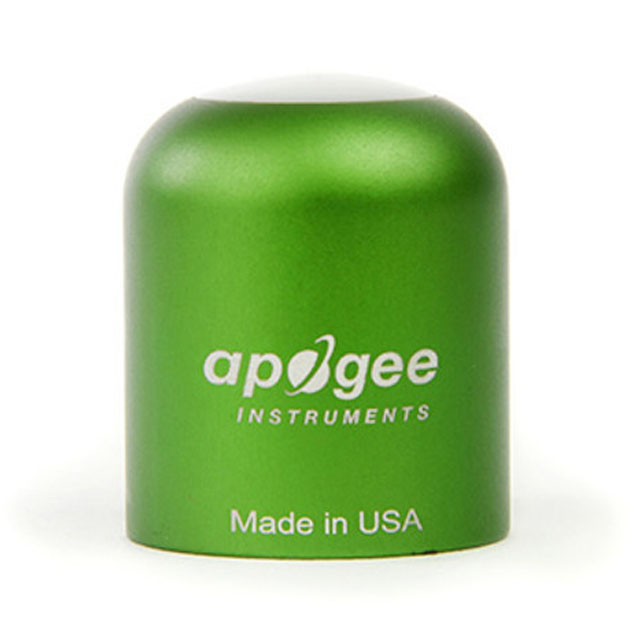

The SE-212 is an amplified photometric sensor with a 0 to 2500 mV output and a 0-150000 lux range. The sensor features a rugged, aluminum housing that is fully-submersible and is built to withstand harsh conditions, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The sensor cable includes an IP68 marine-grade stainless-steel cable connector to simplify sensor removal and replacement from permanent installations for maintenance and calibration. Typical applications of photometric sensors include measuring light levels for human vision in offices, sports arenas, hospitals, museums and more.

SE-212: Amplified 0-2500 mV, 0-150000 lux Photometric Sensor drawing：

SE-212: Amplified 0-2500 mV, 0-150000 lux Photometric Sensor Specifications:

Power Supply	5 to 24 V DC
Current Draw	Maximum of 10 μA
Output (sensitivity)	0.0167 mV per lux
Calibration Factor	60 lux per mV
Calibration Uncertainty	± 5 %
Output Range	0 to 2500 mV
Measurement Range	0 to 150000 lux
Measurement Repeatability	Less than 0.05 %
Long-term Drift (Non-stability)	Less than 2 % per year
Non-linearity	Less than 1 %
Response Time	Less than 1 ms
Field of View	180°
Spectral Range	CIE 1931 luminous efficiency function
Directional (Cosine) Response	± 2 % at 45°; ± 5 % at 75°
Temperature Response	Less than 0.1 % per C
Operating Environment	-40 to 70 C; 0 to 100 % relative humidity
Dimensions	30.5 mm diameter, 37 mm height
Mass (with 5 m of cable)	140 g
Cable	5 m of shielded, twisted-pair wire; TPR jacket (high water resistance, high UV stability, flexibility in cold conditions); pigtail lead wires; stainless steel (315), M8 connector
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
