Datasheet User's Manual

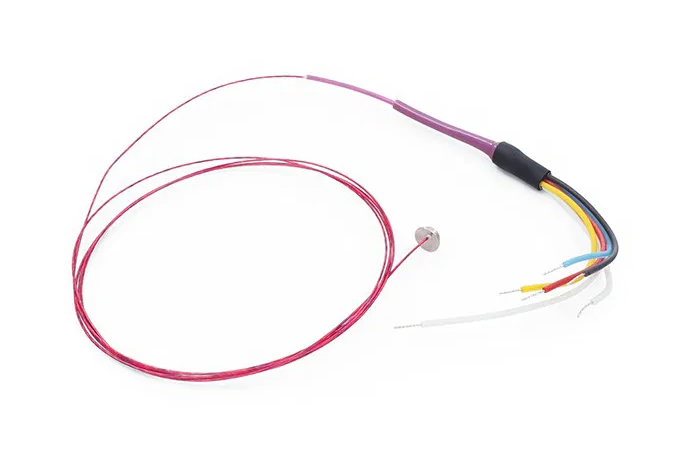

These miniature pressure transducers have been specially developed for very rapid hydrodynamic and aerodynamic in situ pressure measurements. The 2Mi sensors are available in a variety of housing designs and can simply be stuck on at the desired location. Despite its miniature design, the sensor chip is protected against external influences by a steel housing and a silicone elastomer coating. It can also be used in liquids.
Pressure Ranges：0…1 to 0…400 bar
Accuracy：± 0,5 %FS
Pressure Connection：Elastomer coating
Dimensions：? 4,5 mm x 3 mm
Temperature Range：-20…80 °C

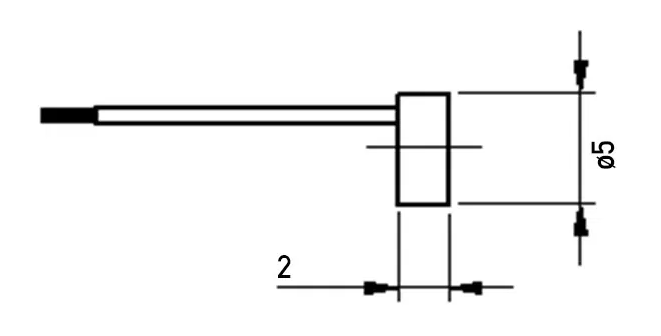

Sketch
