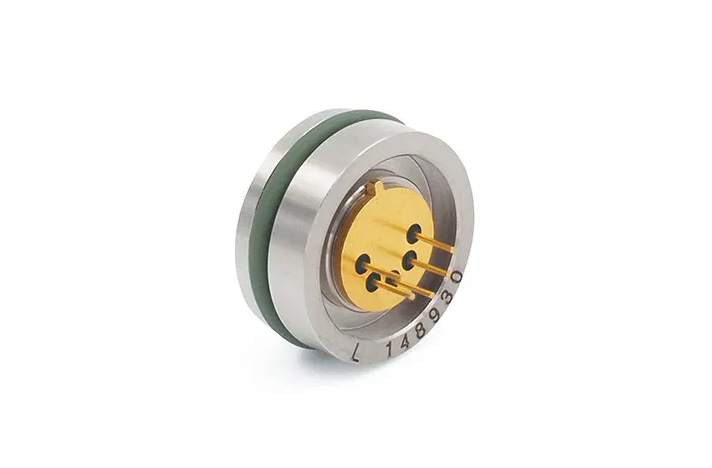

The pressure transducers of the 8L series have a compact, robust housing made of stainless steel, giving them excellent long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.
Pressure Ranges：0…0,2 to 0…200 bar
Accuracy：± 0,5 %FS
Long Term Stability：± 0,2 %FS
Dimensions：? 17 mm x 7 mm
Temperature Range：-40…125 °C

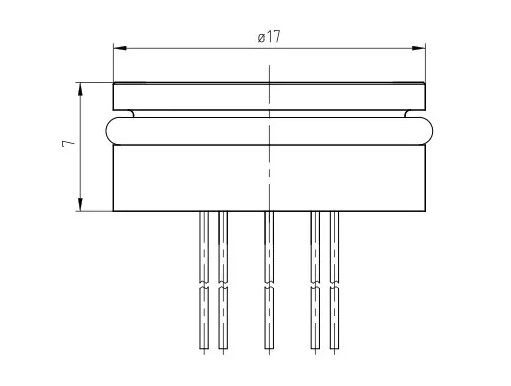

Sketch
