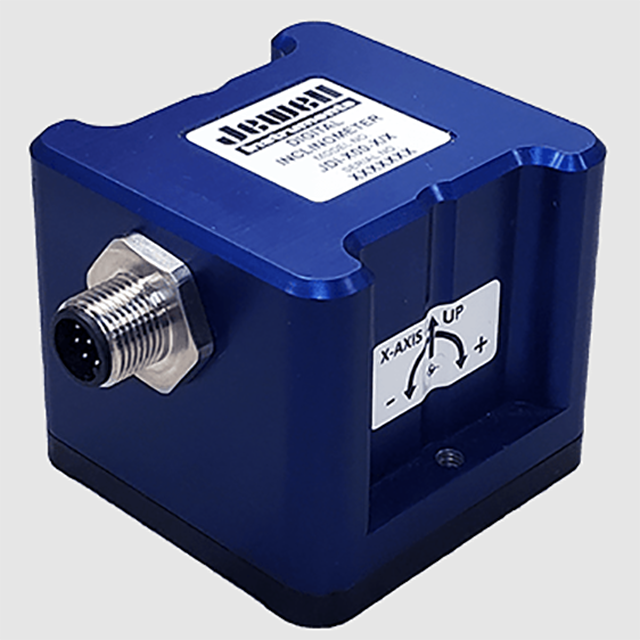

Jewell JDI-100/200 Digital MEMS Inclinometer

Updated:2026-01-09

Brand: Jewell
Model: JDI-100/200
Description: The JDI-100/200 series is a digitally temperature compensated inclinometer available in single and dual-axis configurations. The robust and rugged design is great for industrial use, yet includes the
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell JDI-100/200 Digital MEMS Inclinometer Description：

Datasheet JDI User's Manual

The JDI-100/200 series is a digitally temperature compensated inclinometer available in single and dual-axis configurations. The robust and rugged design is great for industrial use, yet includes the low-cost MEMS technology. These units are available with DB9, Pigtail, Deutsch, Double Deutsch, 6-Pin Circular (C06), or M12 connectors for maximum versatility.

Specifications

Measurement Range (°)¹	±1	±3	±14.5	±30	±60
Relative Accuracy (° typical)²	0.004	0.004	0.004	0.004	0.004
Digital Resolution (° max)	0.0001	0.0001	0.0001	0.0001	0.0001
Repeatability (°)	0.01	0.01	0.01	0.01	0.01
Bias Over Temperature (PPM/°C, typical)	80	80	80	80	80
Transverse Axis Misalignment (° max)	0.25	0.25	0.25	0.25	0.25
Bandwidth (Hz, nominal) (-3dB)	(Sample Rate)/4
Non-linearity (% FS), (-20°C to 50°C)	0.60	0.20	0.05	0.03	0.02
Accuracy – Temperature Sensor (°C, max)	±2	±2	±2	±2	±2
Warm Up Time (seconds, typical)	0.5	0.5	0.5	0.5	0.5

Number of Axes	1 or 2
Input Voltage Range (VDC)	5 min, 9 to 36 typ, 38 max, reverse wiring protected
Power- RS-485 Termination Enabled (mW, max)	800.0
Power- RS-485 Termination Disabled (mW, max)	600.0
Galvanic Isolation – Power Inputs (rms)	2000
Protocol	Half Duplex, Proprietary ASCII, & MODBUS-RTU
Baud (bps)3	2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 500000 (max)
Communication Settings3	8 bits, 1 stop bit, even \| odd
Data Sample Rate (Hz)3	3.9, 7.8, 15.6, 31.2, 62.5, 125
Node ID3	0+last 2 digits of serial number
Filtering	User selectable
Bus Termination – Internal (120Ω)3	On/Off

Operating Temperature Range	-40° to +85 °C
Storage Temperature Range	-55° to +105 °C
Shock	18 g, 0.011 sec, ? sine
Vibration	20 grms 5Hz to 2KHz
Seal	IP67 (when mated to IP67 connector)

Weight	10.4 oz
Dimensions	2.25 × 2.25 × 1.99 in
Features	? Ranges: ±1°, ±3°, ±14.5°, ±30°, and ±60° ? Digital Interface Options: ASCII (RS-485/RS-232) and Modbus (RS-485) ? Robust & Rugged Enclosure ? Single or Dual Axis Options ? Low-cost MEMS Technology ? RoHS and REACH Compliant ? Single DC Power Input – Galvanically Isolated ? Integrated Temperature Sensor ? IP67 Seal (when mated to IP67 connector)
Applications	? Industrial Automation & Control ? Construction & Agricultural Equipment ? Solar Tracking ? Mobile Cranes ? Platform Leveling/Positioning ? Mobile Radar Equipment ? Bridge Monitoring
