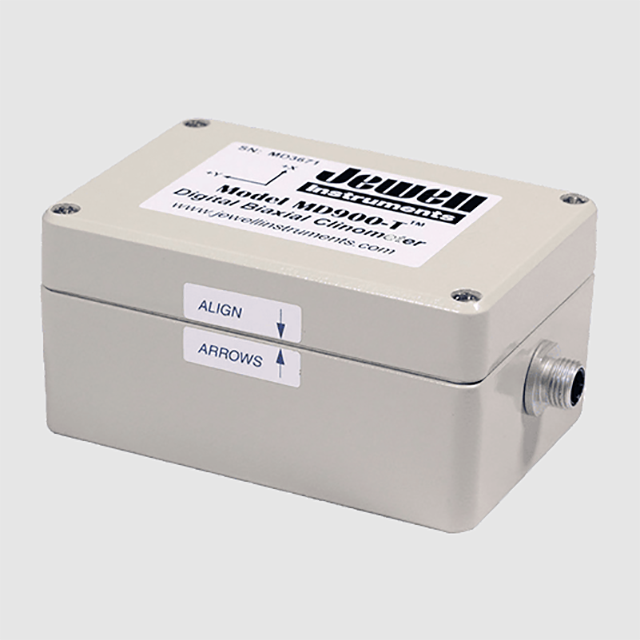

Jewell Model MD900-T Digital Clinometer

Updated:2026-01-24

Brand: Jewell
Model: Model MD900-T
Description: The biaxial model MD900-T is an economical digital clinometer with powerful firmware features. User programmable settings include AUTO-zero (tare), baud and output rate, sample averaging, and more. Ou
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell Model MD900-T Digital Clinometer Description：

Datasheet User Manual Outline Drawing

The biaxial model MD900-T is an economical digital clinometer with powerful firmware features. User programmable settings include AUTO-zero (tare), baud and output rate, sample averaging, and more. Output is RS-232 or RS-422 (RS-485 full-duplex). The MD900-T easily integrates with a variety of GPS receivers and supports Trimble TCM, NMEA XDR, BAE, and Ashtech output protocols. Units ship standard with 6-ft. hook-up cable and a 100-240VAC power transformer. Use the MD900T for industrial pitch and roll measurement, marine piling, dredging and construction systems, platform leveling, geotechnical monitoring, and more.

Specifications

	High-Gain	Standard	Wide-Angle
Angular Range (°)	±10	±25	±50
Resolution (°)¹	0.002	0.004	0.01
Repeatability (°)	0.01	0.01	0.01
Scale Factor (°/mA)²	1.25	3.125	6.25
Non-linearity (%)³	1	1	1
Output Voltage (V)	RS-232, RS-422 (RS-485 full duplex)
Output Format	NMEA XDR, Trimble TCM, BAE, Ashtec compatible, Simple (default: X, Y, Temperature, S/N)
Baud Rate	9600 (default), 19200, 28800, 57600, 115200, 230400
Channels	X-tilt, Y-tilt, Temperature, Serial No.
Kz Coefficient (°/C, typical)	<10 arcsec
Ks Coefficient (%/C, typical)	0.03
Time Constant (seconds)	0.15
Natural Frequency (Hz)	7
Power	7-28 VDC @ 30mA, 250 mV ripple max, reverse polarity protected
Environmental	-40 to +85°C operation and storage. 100% humidity, IP65
Materials	Die-cast aluminum, painted

Weight	19.2 oz
Dimensions	4.7 × 3.14 × 2.4 in
Applications	? Antenna Positioning ? Structural Monitoring ? Industrial Test & Measurement ? Marine Piling ? Pitch & Roll Measurement
