Datasheet User's Manual

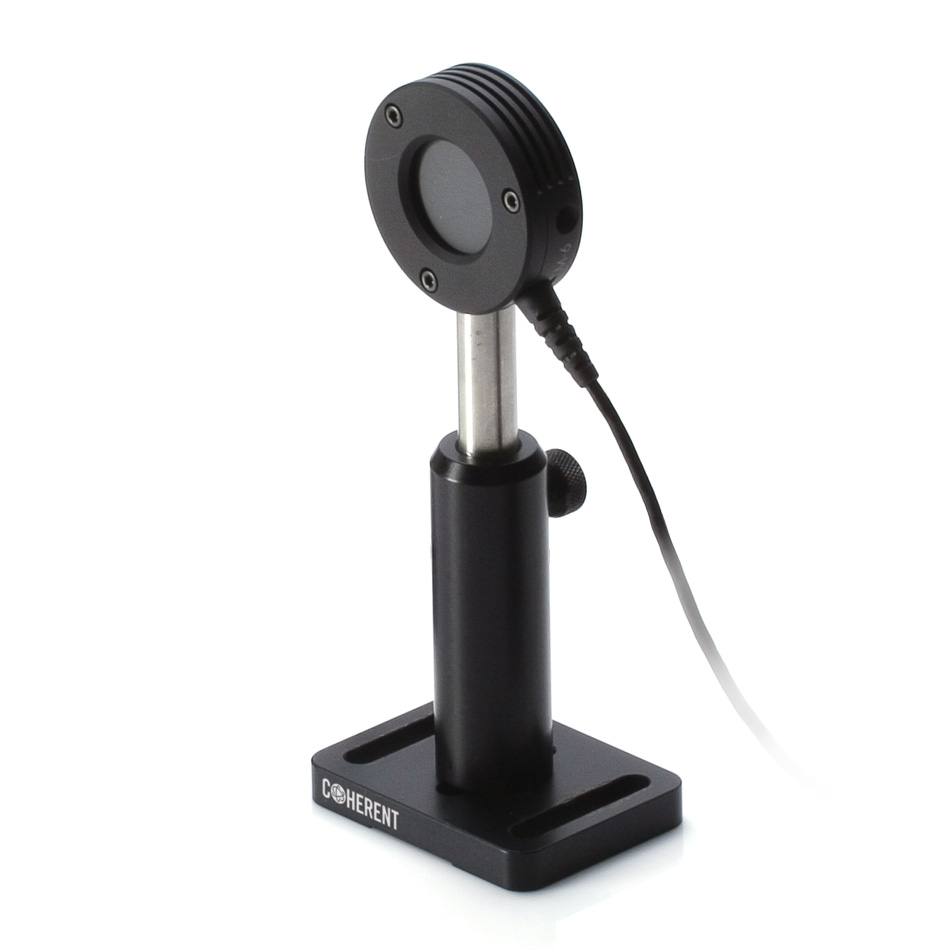

The EnergyMax-RS J-25MB-LE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1110743) is available.
Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 50 μJ to 50mJ at up to 1000 pps. Direct RS232 interface.
A small heatsink (PN 1123430) and medium heatsink (PN 1123431) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.
Key Features:
190 nm to 12 μm spectral range
25 mm diameter active area
50 μJ to 50mJ energy range
1000 pps repetition rate operation
Direct RS232 interface
ISO 17025 accredited
Specifications
