Datasheet User's Manual
The EnergyMax-RS J-50MB-HE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1110573) is available.
A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

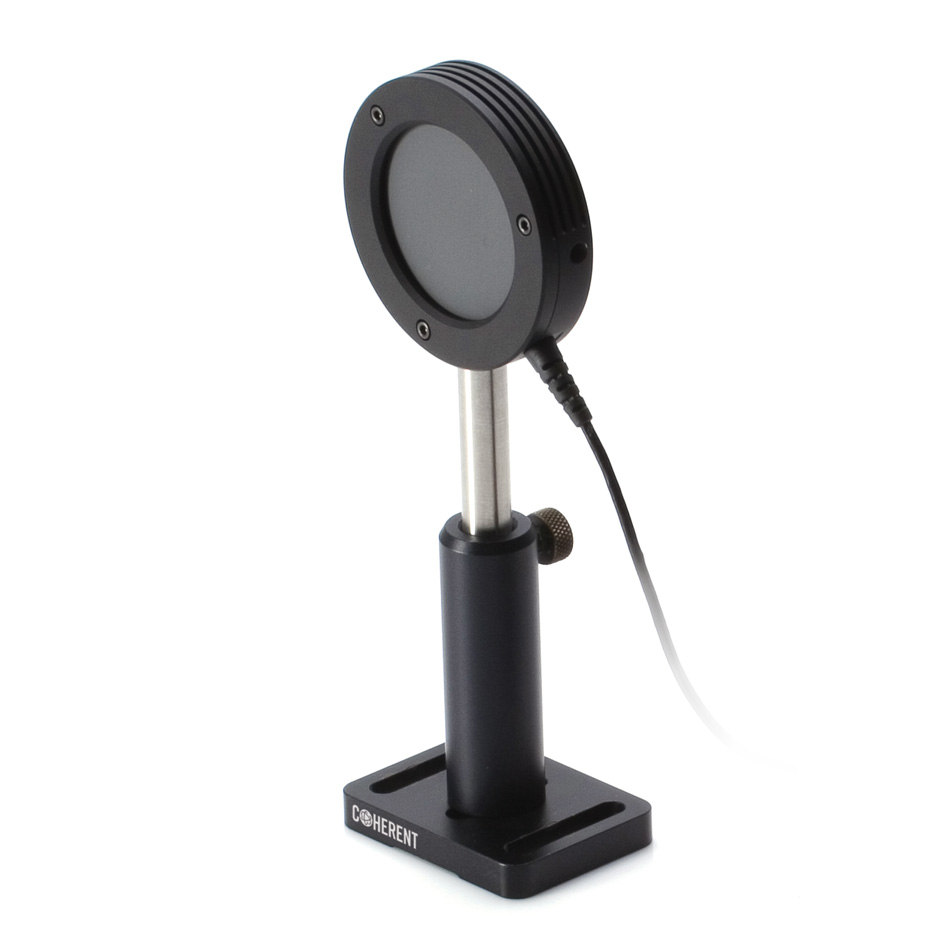

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 1.6 mJ to 2J at up to 300 pps. Direct RS232 interface.
Key Features:
190 nm to 12 μm spectral range
50mm diameter active area
1.6 mJ to 2J energy range
300 pps repetition rate operation
Direct RS232 interface
ISO 17025 accredited
Specifications
