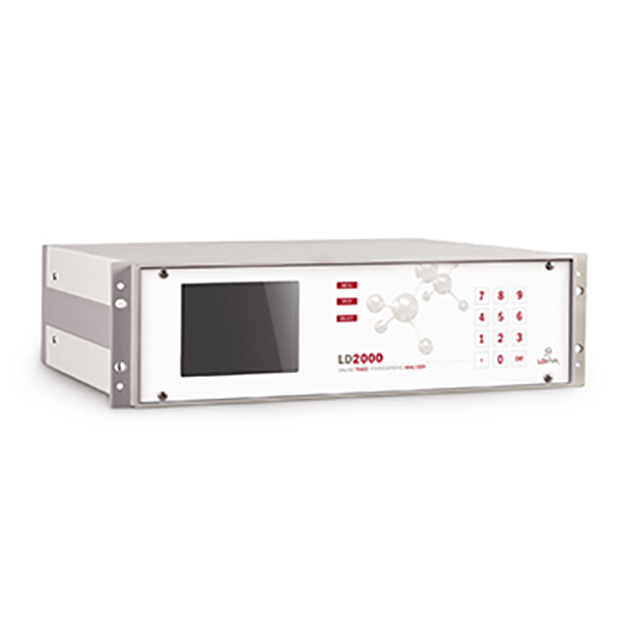

Trace Total Hydrocarbons (THC) Analyzer - LDetek LD8001FID (LD2000)

Updated:2025-03-13

Brand: PST/LDetek
Model: LD8001FID (LD2000)
Description: The LD8001FID (LD2000) is an easy to use instrument that offers the ideal solution for total hydrocarbon measurements. Its compact design and small footprint make it easy to install alongside other eq
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Trace Total Hydrocarbons (THC) Analyzer - LDetek LD8001FID (LD2000) Description：

Datasheet

Monitors Gas Stream Inflammability Levels and Gas Purity in Bulk Gases

Features

LDetek Flame Ionisation Detector (FID) design offering low maintenance

Bootloader integrated for software update via Ethernet

Large scale measurement

4-20 mA output as standard

Range Identification Relay

Unique LDetek Electronic flow controller design

3U cabinet

The LD8001FID (LD2000) is an easy to use instrument that offers the ideal solution for total hydrocarbon measurements. Its compact design and small footprint make it easy to install alongside other equipment, and it is robust to withstand tough industrial conditions in daily use. The LDetek Flame Ionisation Detector (FID) and electronic communication platform offer the high performance required by plant operators.

Specifications

Detector Type	Flame Ionisation Detector
Range	0 – 10 ppm> 0 – 100 ppm 0 – 1000 ppm Other range possible
Repeatability	< 1% full scale
Accuracy	Better than ± 1% full scale
Standard Features	Manual or autoranging (user selectable) Microprocessor controlled 5.6'' TFT intelligent LCD module with Touch Screen Self diagnosis system with auto-resolve alarm 4-20 mA isolated output Alarm Historic Digital ouputs for remote monitoring: (all dry relay contacts) System status (1 output) Range in use (3 output) Calibration in use (1 output)
Options	Serial port: RS-232 / 422 / 485 / Profibus 2 alarm outputs (user programmable set point)
Gas Connections	Sample: 1/8'' compression fittings Vent: 1/8'' compression fitting
Calibration Gas	Zero: LDP1000 purified gas (Getter) Span: 80%-90% of full scale of methane
Sample Flow Requirements	50 to 200 sccm
Air Flow Requirements	200 to 600 sccm
Fuel Flow Requirements	40 to 150 sccm
Recommended Maximum Operating Pressure	40 PSIG)
Recommended Minimum Operating Pressure	10 PSIG
Operating Temperature	10 °C to 45 °C
Supply	115 VAC, 50 – 60 Hz or 220 VAC, 50 – 60 Hz
Power Consumption	Maximum 50 watts
Drift	< ± 1% over 24 hours
Weight	27 lbs (12 kg)
