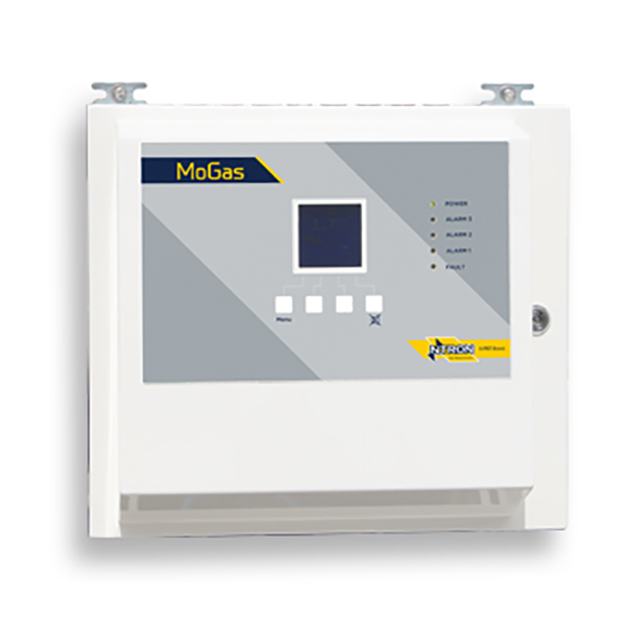

Medical Gas Analyzer - Ntron MoGas

Updated:2025-03-13

Brand: PST/Ntron
Model: MoGas
Description: The MoGas Medical gas analyzer range is a wall or surface mounting instrument designed for use on Medical Oxygen Generation systems for checking the purity of the Oxygen produced. The MO2GA93 range is
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Medical Gas Analyzer - Ntron MoGas Description：

Datasheet

Designed for Medical Gas Generation Systems

Features

Simply to install and easy to operate

Large backlit LCD display

Environmental protection rating to IP65

Optional inbuilt audible and visual alarms

Programmable O2, CO2 and CO alarms output

Two isolated 4-20Ma analogue outputs

Zirconia oxygen sensor

Infrared CO2 sensor

Electrochemical CO sensor

The MoGas Medical gas analyzer range is a wall or surface mounting instrument designed for use on Medical Oxygen Generation systems for checking the purity of the Oxygen produced. The MO2GA93 range is specifically designed for Medical Oxygen Generation systems producing Oxygen at 93% Volume, and is designed to monitor the Oxygen produced. The unit is fitted with Oxygen, Carbon Dioxide, Carbon Monoxide and Dewpoint Sensors for simultaneous monitoring of the measured Oxygen stream, and includes Flow and Regulatory control.

Specifications

Performance
Size	530mm high x 417mm wide x 208 deep
Weight	23kg
Measurement ranges	0-96% Oxygen (zirconia) 0-500ppm Carbon Dioxide (infrared) 0-50ppm Carbon Monoxide (electrochemical) 0-1000 dewpoint (moisture)
Power requirements	100-240VAC 50Hz. Customer power connection
Enclosure	Painted mild steel (RAL9010)
Visual indication	Large LCD Display with backlight
Alarm levels	Two user configurable alarm relays-each channel
Sample gas	Position pressure samples up to 10BARG. Regulated within enclosure
Electrical connections	Two-off M20 gland entry holes
Sample connection	6mm compression fittings
User interface	4-membrane push button
Temperature range	Overall operating: 0 to +45°C
Environmental rating	IP65
Humidity range	15% to 95% relative, non condensing
Electromagnetic compatibility	CE marked and tested to EN61000-6-4; EN61000-6-2; EN55022; EN61000-3-3; EN61000-3-2
O2 Sensor
Type	Zirconia
Power supply	18-24VDC
System output	4-20mA
Response time	T90<3s
Temp. ambient	0-45°C
Other temp	Heater 55C
Sensitivity of range	0.10%
CO2 Sensor
Type	NDIR Infrared
Power supply	24/5VDC
System output	4-20mA
Response time	T90 <30s
Temp ambient	0 to +45°C
Sensitivity of range	10ppm
CO Sensor
Type	Electrochemical
Power Supply	24 VDC
System output	4-20mA
Response time	T90 < 20s
Temp ambient	0 to 45°C
Sensitivity of range	0.3ppm
Moisture
Type	Dewpoint
Power Supply	240VDC
System output	4-20mA
Response time	T90<30s
Ambient temp	0-45°C
Sensitivity	0.3ppm
