Datasheet Outline Drawing User Manual

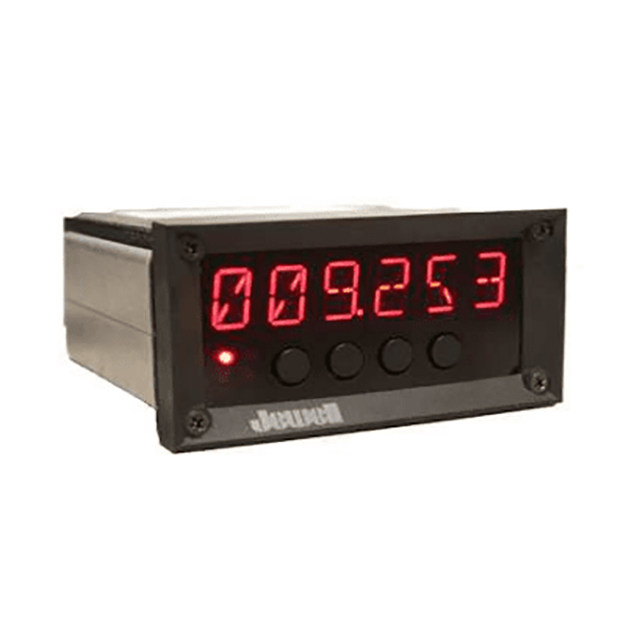

Dual Axis Panel Mount Display available for a wide variety of applications. The Jewell Instruments DSI-1000 Series Digital Display is a microprocessor-based panel meter designed to take the output from Jewell’s gravity-referenced inclinometers and display it at an angle. The compact unit provides the ±15VDC sensor excitation with dual channel inputs condition the inclinometer output and displays the angle down to 0.001 degrees.
Specifications
| Features |
? Dual Channel Inputs ? Front Panel Digital Zero (Tare) ? Splash Proof Bezel ? Heavy Duty Aluminum Case ? Front Panel Switches for Programming and Calibration ? 6 Digits, 0.56” LED Readout with Negative Indication ? Two Set-Points with Relay Closures ? Short Case, Only 4” Behind Panel Depth ? Programmable for Different Range Inclinometers ? RS232 Interface Standard ? 0 to 10VDC Analog Output ? ±15 VDC Sensor Excitation |
| Applications |
? Industrial: Used in conjunction with our inclinometer to provide a readout of the tilt in degree format ? Marine: Alarm monitoring system ? Industrial: Monitoring Remote Sensors ? Fire Trucks: Monitoring tilt angle of ladders |
