Jewell ECG eCompass Series Description：

Datasheet User's Guide Installation Quick Guide

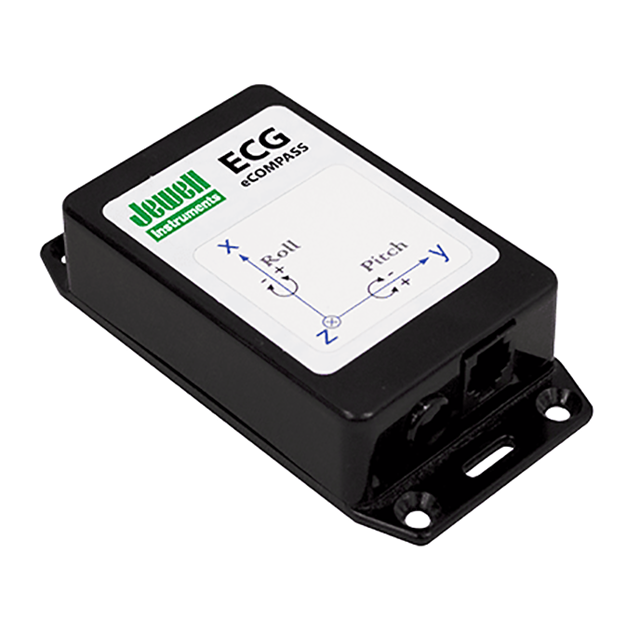

If your compass application involves vibration, acceleration, uneven terrain, or rough seas, the ECG Series, a gyro-stabilized electronic compass, is an uncompromising solution that will outperform rival units that cost more. The ECG provides remarkably accurate heading, pitch, and roll in dynamic conditions. It all starts with a precision 3-axis solid-state magnetometer. Two angular rate gyros independently stabilize pitch and roll. They augment a dual-axis, electrolytic tilt sensor that provides precise tilt measurements in static environments. Two sets of independent filters, one set for pitch and one for roll, combine gyro and electrolytic sensor measurements to provide the best available tilt measurements.

Specifications

Accuracy (rms)¹	±0.5° ±3.0°	Static, Tilt <35° Dip <60° Dynamic, rate <250°/sec
Repeatability	±0.3°	Static, no filter
Response Time (msec)	36	Minimum, no filter
Dip Angle Range	±80°
Tilt Range	±40°
Update Rate (measurements per second)	28

Accuracy	±0.3°	Factory calibrated
Repeatability	±0.2°	No filter
Range	±42°
Settling Time (sec)	0.5	Gyros enabled

Supply Voltage (V_DD₎	6 - 45Vdc unregulated 5.0Vdc regulated	4.9Vdc minimum
Supply Current	Operating: 30mA Sample: 10mA Standby: 2mA	Typical

Operating Temperature	-40° to 105°C
Storage Temperature	-50° to 150°C
Humidity	0-90%

Enclosure Material	(ABS) Flame Retardant Plastic UL94 VO or Diecast Aluminum Alloy (Type 360.1)
PCB Size	1.8"W x 3.0"L x 0.6"H
PCB Mounting	4 #4 screws, 1.4″x 2.2″ spacing
Weight	Plastic: 3.2oz (90.7g) Aluminum: 7.2oz (204.1g)
Connectors	8 pin, single-row, 0.1″ friction header 6 pin RJ12 modular jack

Signal Type	RS-232 and RS-485
Baud Rate (bps)	2400, 4800, 9600, 19200, 38400, or 57600
Character Format	8 data, no parity, 1 stop
Input Buffer Size	110 characters
Output Buffer Size	110 characters
Output Format	NMEA 0183 and binary
Output Data Rate	1 to 1650 sentences per minute
Operating Modes	Continuous or sample
Angle Units	Degrees, mils, radians, 16-bit integer

Dimensions	5.43 × 2.38 × 1.22 in
Features	? Exceptional Dynamic Performance ? High Static Accuracy ? RS-232 & RS-485 Outputs Available ? Precise Calibration ? Single Supply Operation ? Plastic or Aluminum Enclosure Options
Applications	? Robotics ? Platform Stabilization ? Excavation Machinery ? Irrigation Equipment
